Place of Origin : Guangdong, China
Model Number : F6-DC1000V-80KW/A
Brand Name : KIWI
Output Power : 80kW
Installation Method : Floor-standing
Start-up and billing method : RFID,plug and charge,Scan QRCode
Grid frequency : 50Hz±10Hz
IP protection level : IP54
OCPP : OCPP 1.6J/1.5J
USB : Upgrade, download
RS485 : Point to Point communication
Insulation detection : DC+ and PE, DC- and PE impedance
Connection temperature : Plug temperature detection
DC leakage : RCD
Packaging Details : Carton/wooden box
Supply Ability : 300 Piece/Pieces per Month
MOQ : 3 pieces
Price : $15,000.00/pieces 3-4 pieces
Features | Discription | ||||||
Rated Power | 80KW | ||||||
Charging mode | RFID、plug and charge、Scan QRCode | ||||||
Size (H * W * D) | 700*340*1670mm | ||||||
Weight | 250kg | ||||||
Plug wire length | 3.5m(customizable) | ||||||
Plug standard | CHAdeMO or CCS1 orCCS2 orGB/T | ||||||
Protection level | IP54 | ||||||
Cooling Method | Wind cooling | ||||||
Standard :LAN Optional :WIFI、4G | server communication, APP communication | ||||||
CPP | OCPP 1.6J/1.5J |
Input | ||||||||
Input Voltage | Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE) | |||||||
Input Current | Each phase 0~136.5A | |||||||
Leakage Protection | Type B RCD 30mA + 6mA | |||||||
Operating temperature | -20℃~60℃ |
Output | ||||||||
Output voltage | DC 150V~1000V | |||||||
Output current | 0 ~300A |

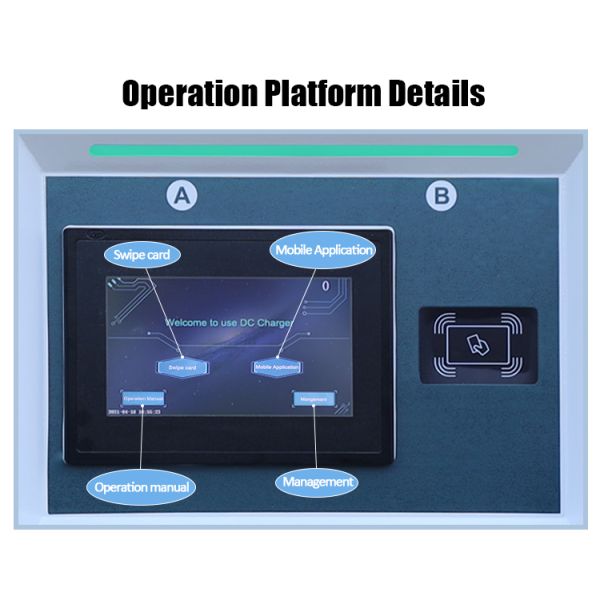

Human-computer interaction | ||||||||
LED indicator | Power supply, charging green, fault red | |||||||
LCD | HD high-brightness industrial resistance display |
![]() |
80kW DC EV Charger Station Advanced Technology for Ocpp 1.6J/1.5J Agreement Standards Images |
