Place of Origin : Guangdong, China
Model Number : DC 180KW / 240KW
Brand Name : KIWI
Packaging Details : professional plywood box
Supply Ability : 500 Piece/Pieces per Month
MOQ : 2 pieces
Price : $31,500.00 - $38,500.00/pieces
Interface Standard : CCS1, CCS2, CHAdeMO, GB/T
Output Current : 0-600A
Output Power : 180-240KW
Input Voltage : AC 380V 50/60H
Installation Method : Floor-standing
Start-up and billing method : RFID,plug and charge,Scan QRCode
Input voltage : Three phase AC 380V±20%(ABC+N+PE)
Input current range : AC 0A~364A
Grid frequency : 50Hz±10Hz
Output current : DC 0~500A; DC 0~600A
Output voltage : DC 150V~1000V
IP protection level : IP54
OCPP : OCPP 1.6J/1.5J
AC leakage : RCD B
Port : Shenzhen,Foshan,HK,etc.
Smart EV Charger for Public Commercial DC Fast Charging Stations KIWI Best Project
Power | 180KW | | 240KW | | |||
Output Current | 0~500 A | | 0~600 A | | |||
Input Voltage | AC 380V 50/60Hz | | | | |||
Output Voltage | DC 200V~1000V | | | | |||
Charging Connector | CCS1 / CCS2 / CHAdeMO / GBT | | | | |||
Charging Standard | IEC61851, IEC62196, ISO15118 | | | | |||
Charging Mode | Plug&Charge/RFID/APP/OCPP(01.5j/1.6j) | | | | |||
Size | 772*763*1966mm | | | | |||
Weight | >258kg | | | | |||
Input Current | AC 0A~280A, 90mm cable | | AC 0A~364A, 90mm cable | | |||
Leakage Protection | RCD AC 30mA | | | | |||
Plug Wire Length | 5M(Customizable) | | | | |||
Plug Standard | European standard CCS2 | | | | |||
Cooling Method | Wind Cooling (Customizable for liquid cooling) | | | | |||
Protection Level | IP54 | | | | |||
Operation Temperature | -20℃- 55℃ | | | | |||
Relative Humidity | 5%-95% | | | | |||
lnstallation Method | Floor, column (optional) | | | | |||
Altitude Limitation | ≤2000m | | | | |||
Operation Life | ≥10000 | | | | |||
More Parameters | Click here to get | | | |
![]() |

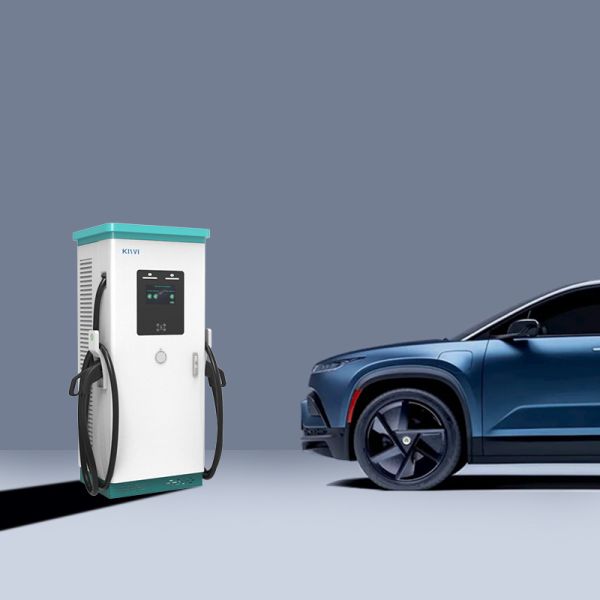

Smart EV Charger Station Public Commercial DC Fast CHAdeMO 180-240KW Images |
