Place of Origin : Guangdong, China
Model Number : 60KW / 120KW / 150KW
Brand Name : KIWI
Packaging Details : professional plywood box
Supply Ability : 1000 Piece/Pieces per Month
MOQ : 2 pieces
Price : $8,999.00 - $25,999.00/pieces
Interface Standard : CCS
Output Current : 0-100A
Output Power : 120KW
Input Voltage : 150-1000V
Installation Method : Floor-standing
Start-up and billing method : RFID,plug and charge,Scan QRCode
Input voltage : Three phase AC 380V±20%(ABC+N+PE)
Input current range : AC 0A~92A, 50mm cable
Grid frequency : 50Hz±10Hz
Output current : 60KW DC 0 ~100A
Output voltage : DC 200V~1000V
IP protection level : IP54
OCPP : OCPP 1.6J/1.5J
AC leakage : RCD
Port : Shenzhen,Foshan,HK,etc.

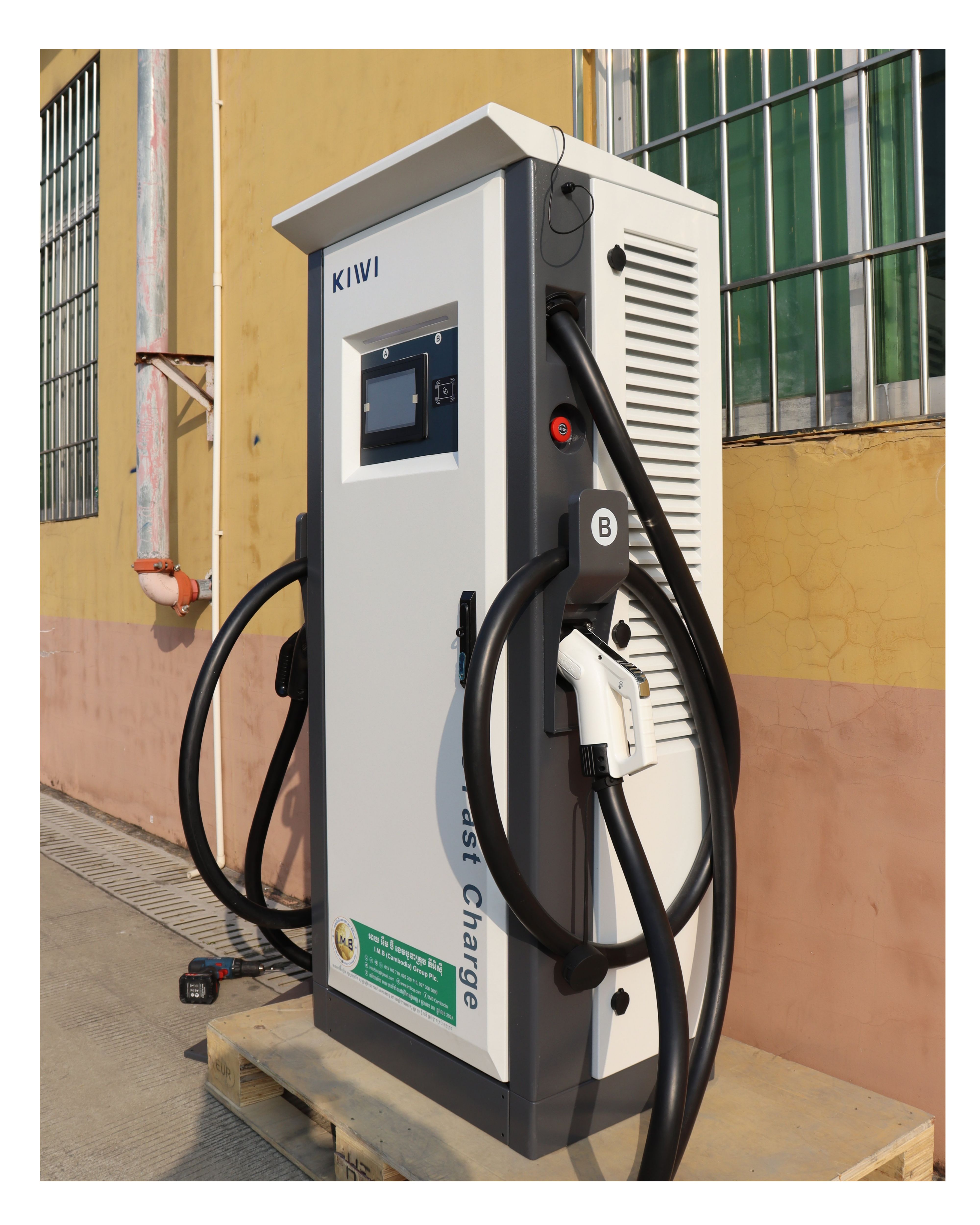

DC 200V-1000V Output 120KW Commercial Fast OCPP EV Charger for Plug and Charge Billing
Output power | 60KW | 120KW | 150KW | ||
Output Current | 0 ~ 200A | 0 ~ 400A | 0 ~ 500A | ||
Input Voltage | AC 380V 50/60HZ | | | ||
Output Voltage | DC 200V ~ 1000V | | | ||

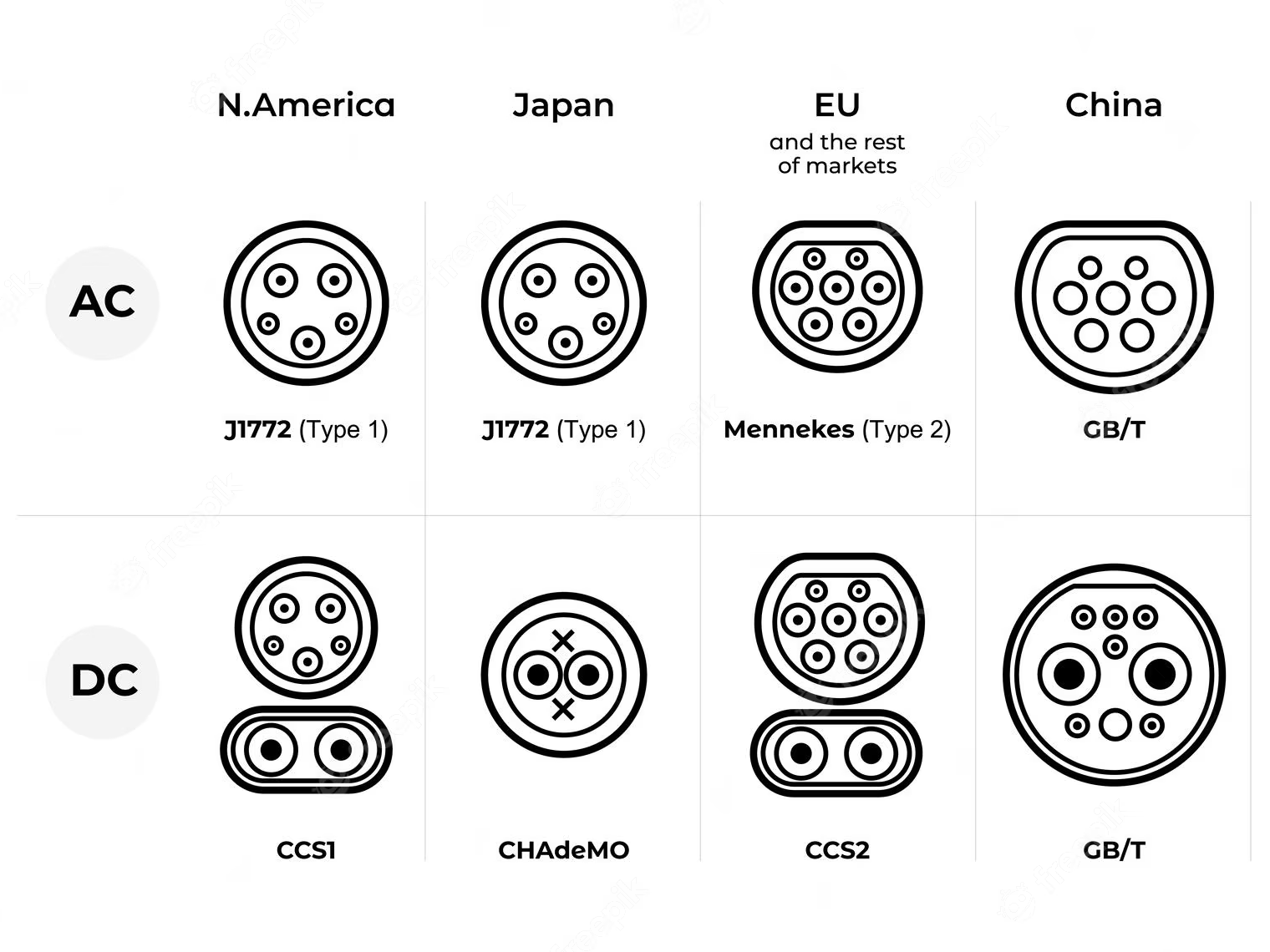

Charging Connector | CCS1 / CCS2 / CHAdeMO / GBT | | | ||
Charging Standard | EC61851, IEC62196, ISO15118 | | | ||
Charging Mode | Plug&Charge / RFID / APP / OCPP(1 .5J / 1.6J) | | | ||
Size | 700 * 340 * 1670mm | | | ||
Weight | >258kg | | | ||
Input Current Range | AC 0 ~ 182A, 50mm cable | AC 0 ~ 230A, 75mm cable | AC 0 ~ 280A, 90mm cable | ||
Leakage Protection | RCD AC 30mA | | | ||
Plug Wire Length | 5M ( Customizable) | | | ||
Cooling Method | Wind cooling | | | ||
Protection Level | IP54 | | | ||
Operation Temperature | -20C ~ 55 ℃ | | | ||
Relative Humidity | 5%-95% | | | ||
Installation Method | Floor, column ( optional) | | | ||
Altitude Limitation | ≤ 2000m | | | ||
Operation Life | ≥ 10000 | | | ||
More Parameters | Click here for more parameters | | |
![]() |
DC 200V-1000V 120KW Commercial Fast OCPP EV Charger Plug Charge Billing Images |
